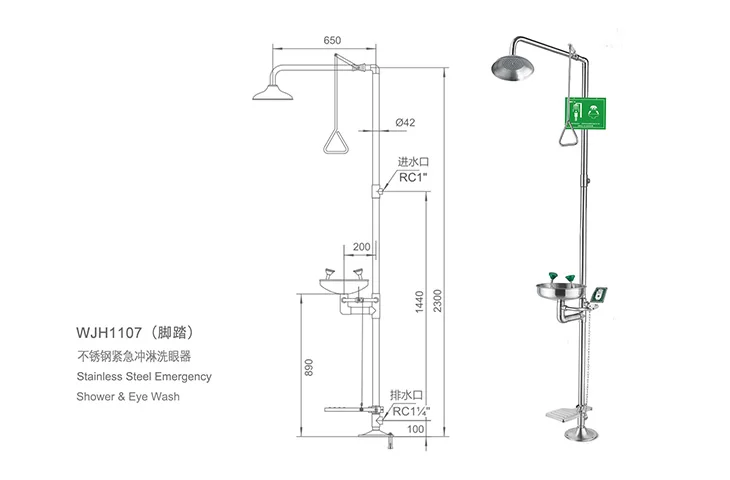

Floor Mounted Safety Shower with Eyewash

Product Parameters

Material : Stainless Steel 304

Surface finishing : sanded /glossy epoxy coated

Usage : drenching body and rinsing faces / eyes can be operated separately or simultaneously

Shower & eye wash switch : SS304 ball valve

Shower head : spinning-formed with curled rim, diameter 250 mm

Pipe diameter : 42 mm

Nominal pressure : 1.0 MPa

Working pressure : 0.2~0.4 MPa

Testing pressure : 1.5 MPa

Temperature requirement on working environment : 0°C~40°C

Flow rate of body shower : ≥76 L/min

Flow rate of eye/face wash : ≥11.4 L/min

Flow rate of eye wash : ≥1.5 L/min

Eyewash bowl features : 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing

Dust cover : integrated with the spray head ( not connected by chain )

Spray head feature : patented design, each spray head equips with one water – flow control valve

Inlet thread : Rc 1”,female

Outlet thread : Rc",female

Inlet height ( from above the floor ) : 1540 mm

Outlet height ( from above the floor ) : 100 mm

Distance between spray heads : 170 mm

Water pattern coverage : water pattern coverage : at the height of 1524 mm above floor, the

water pattern covers a circular area of at least 510 mm in diameter

Notes : the inlet parts and outlet parts are customizable;

 shutoff valve and filter are proposed to be equipped on the water-supply end ;

 stainless steel – made foot treadle is optional as eye wash switch

Product Packaging

Our Floor Mounted Safety Shower with Eyewash packaging box is cleverly filled with pearl cotton according to the shape of the product, which not only ensures that the packaging is safe and firm, but also light and convenient, effectively protecting the integrity of the product, helping to export smoothly, and at the same time facilitating handling, saving time and manpower.installation video below.

Product Operation

Use the Floor Mounted Safety Shower with Eyewash immediately if your eyes or faces or body parts are exposed to a hazardous chemical.

Without delay, make your way to the nearest eyewash station, immediately flush eyes/face or affected body parts for at least 15 minutes.

Keep the eyes open (Hold eyelids open) with your hands to fully irrigate the entire eye. Rotate the eyeballs in all directions to remove contamination from around the eyes. An injured person may need help holding the eyelids open.

Protect the unaffected eye/ body parts from inadvertent secondary contamination.

In using the shower, remove contaminated clothing and shoes during flushing. Seek assistance from any other lab personnel in flushing the affected area or removal of clothing.
